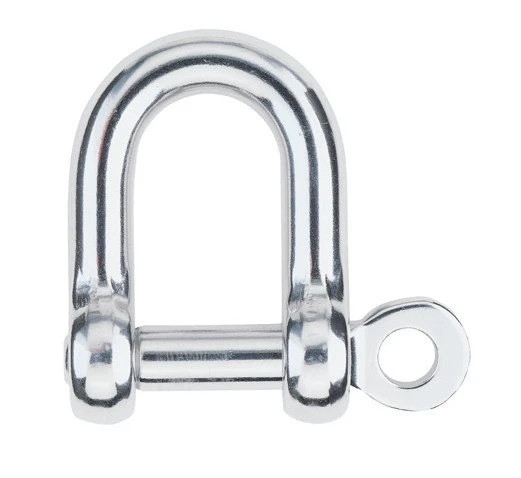

Harken Shackle D 1/4” Pin (6mm)

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

“D” shackles are the most common type of shackle. They are best suited for aligned attachment points.

Product Specs:

Shackle pin Ø (mm)6 mm Shackle pin Ø (in)1/4 in Weight (g)25 g Weight (oz)0.88 oz A (mm)19 mm A (in)3/4 in B (mm)14 mm B (in)9/16 in Maximum working load (kg)750 kg Maximum working load (lb)1650 lb Breaking load (kg)1500 kg Breaking load (lb)3300 lb
